Ubiquiti PowerBridge M10
Cena brutto: 2 029,50 zł
  • Producent: UBIQUITI
  • Numer katalogowy: Ubiquiti PowerBridge M10
  • Dostępność: Na zamówienie
  • Wymiary: 170 x 250 x 53 mm (without the feed) 170 x 250 x 272 mm (with the feed)
  • Waga: 1.15 kg (without the feed)1.2 kg (with the feed)

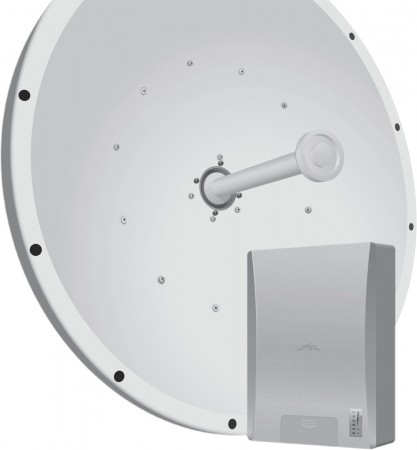

Ubiquiti PowerBridge M10
Powerbridge M10 antena 2x2 MIMO o zwiększonej wydajności odbiornika przy użyciu bardzo wysokiej częstotliwości radiowej 10 GHz . Posiada niesamowitą wydajność z zakresu 20 + km i prędkość do 150 + Mbps (rzeczywistym TCP / IP). Idealny do tworzenia wydajnych mostów na duże odległości.Zysk 34dBi, Częstotliwość - 10,322 GHz - 10,574 GHz, wymiary - 648 mm

Zintegrowana technologia airMAX






Pobierz załączniki:
Antenna Characteristics
PBM10
Frequency Range 10.322 GHz - 10.574 GHz
Gain 33.0 - 34.4 dBi
HPOL Beamwidth 3.0 - 3.7° over band
VPOL Beamwidth 3.0 - 3.7° over band
F/B Ratio 33 dB
Max VSWR < 1.4:1
Dimensions 2 ft / 648 mm
Weight 9.8 kg
Wind Survivability 120 mph
Wind Loading 113 lb @ 100 mph
Polarization Dual Linear
Cross-pol Isolation 35 dB min
ETSI Specification EN 302 326 DN2
Mounting Universal pole mount, PowerBridge M10 bracket





















Physical / Electrical / Environmental
Enclosure Size 170 x 250 x 53 mm (without the feed)170 x 250 x 272 mm (with the feed)
Weight 1.15 kg (without the feed)1.2 kg (with the feed)
Enclosure Characteristics Die Cast Aluminum
Mounting Kit Pole Mounting Kit included
Max. Power Consumption 8 Watts
Power Supply 24V, 1A PoE Supply included
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature -40 to 80° C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4



















System Information
Processor Specs Atheros MIPS 24KC, 400 MHz
Memory Information 64MB SDRAM, 8MB Flash
Networking  Interface (1) 10/100 Ethernet Port







Regulatory/Compliance Information
Wireless Approvals CE
RoHS Compliance Yes
